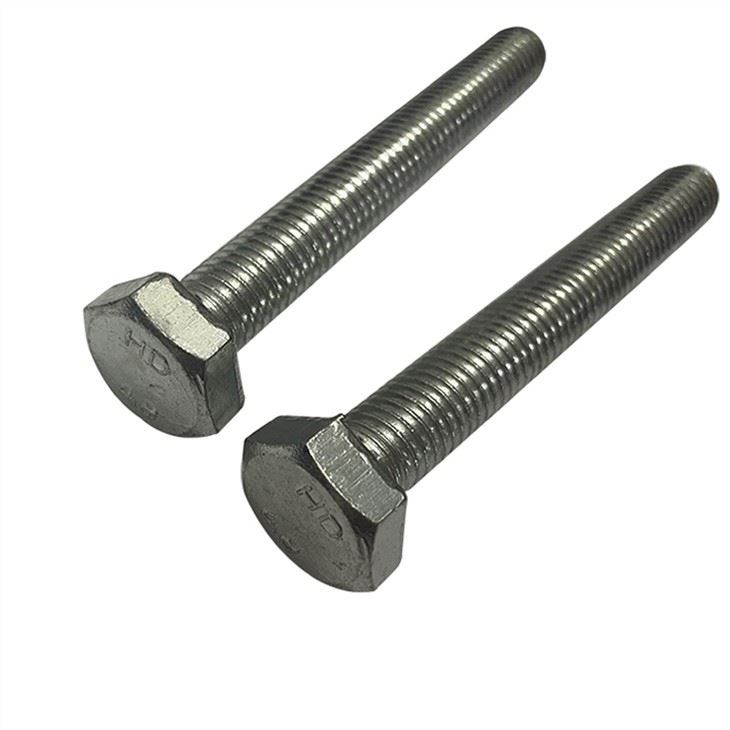

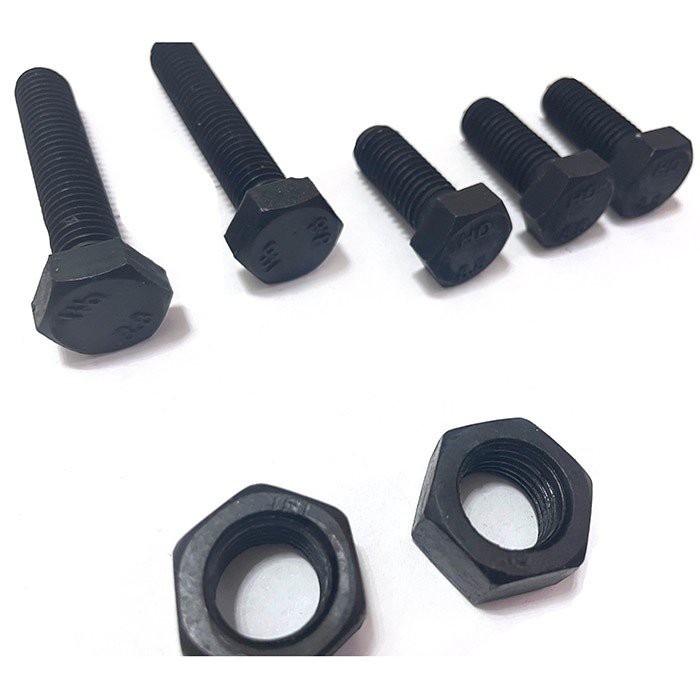

DIN 933 Hexagon Head Cap Screws / Bolts are externally threaded fasteners with a hexagonal washer faced head
and a chamfered tip to facilitate mating with an internally threaded component. DIN 933 hex screws have a fully threaded
shank and are manufactured to very strict tolerances.
All measurements in millimeters (mm)
d1 | k | e | s |
M3 | 2 | 6.01 | 5.5 |
M4 | 2.8 | 7.66 | 7 |
M5 | 3.5 | 8.79 | 8 |
M6 | 4 | 11.05 | 10 |
M8 | 5.3 | 14.38 | 13 |
M10 | 6.4 | 18.9 | 17 |
M12 | 7.5 | 21.1 | 19 |
M14 | 8.8 | 24.49 | 22 |
M16 | 10 | 26.75 | 24 |
M18 | 11.5 | 30.14 | 27 |
M20 | 12.5 | 33.53 | 30 |
M22 | 14 | 35.72 | 32 |
M24 | 15 | 39.98 | 36 |
M27 | 17 | 45.2 | 41 |
M30 | 18.7 | 50.85 | 46 |
M33 | 21 | 55.37 | 50 |
M36 | 22.5 | 60.79 | 55 |
M42 | 26 | 71.3 | 65 |
M48 | 30 | 82.6 | 75 |
