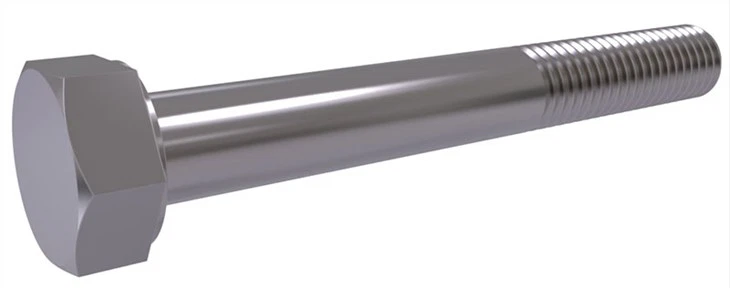

Mated with internally threaded holes and nuts, Available in Class 8.8 and 10.9 steel, zinc plating inhibits the formation of rust while plain finish does not have any corrosion protection. Thread tolerance for Class 8.8 and 10.9 is 6g for plain finish and 6h for plated; right-hand threads are standard. Also called hex head cap screws, the bolt diameter and bolt length determine the minimum threaded length. The bolt's length is measured from under the head to the tip. DIN 960 Hex Head Bolts are similar to ISO 8765 and JIS B1180. Use DIN 961 instead when fully threaded is required and DIN 931 for partially threaded coarse threads.

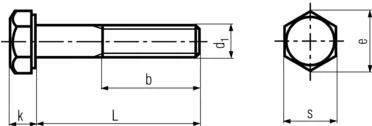

All measurements in millimeters (mm)
d1 | s | e | k | b= to 125 | b= to 150 | b= to 200 |
M8 x 1 | 13 | 14.38 | 5.3 | 22 | 28 | |
M10 x 1 | 17 | 18.9 | 6.4 | 26 | 32 | |
M10 x 1.25 | 17 | 18.9 | 6.4 | 26 | 32 | |
M12 x 1.25 | 19 | 21.1 | 7.5 | 30 | 36 | |
M12 x 1.5 | 19 | 21.1 | 7.5 | 30 | 36 | |
M14 x 1.5 | 22 | 24.49 | 8.8 | 34 | 40 | |
M16 x 1.5 | 24 | 26.75 | 10 | 38 | 44 | |
M18 x 1.5 | 27 | 30.14 | 11.5 | 42 | 48 | |
M20 x 1.5 | 30 | 33.53 | 12.5 | 46 | 52 | |
M20 x 2 | 30 | 33.53 | 12.5 | 46 | 52 | |
M24 x 2 | 36 | 39.98 | 15 | 54 | 60 |
