DIN 603 Carriage Bolt

DIN 603 Carriage Bolt

​DIN 603 - 2017 Cup Head Square Neck Bolts Specification for stainless steel round head square neck bolts (carriage bolts): German standard DIN603
Material: carbon steel, Q235, 45# steel, stainless steel
Nominal diameter: 5mm--20mm
Length: 15mm--300mm
Surface treatment method: zinc plating, chrome plating, copper plating, surface blackening.
Send Inquiry
Description

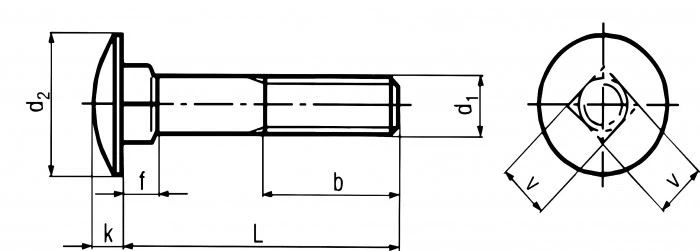

DIN 603 Specifications

1



All measurements in millimeters (mm)

d1

d2 max

k max

f max

b to 125

b to 200

b over 200

M5

13.55

3.3

4.1

16

–

–

M6

16.55

3.88

4.6

18

24

–

M8

20.65

4.88

5.6

22

28

–

M10

24.65

5.38

6.6

26

32

45

M12

30.65

6.95

8.75

30

36

49

M16

38.8

8.95

12.9

38

44

57

M20

46.8

11.05

15.9

–

–

46

_20210610103422
